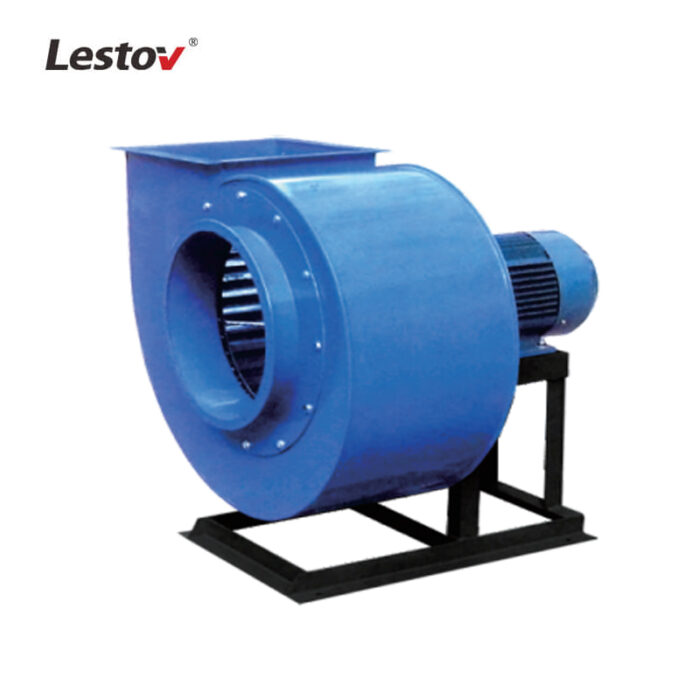

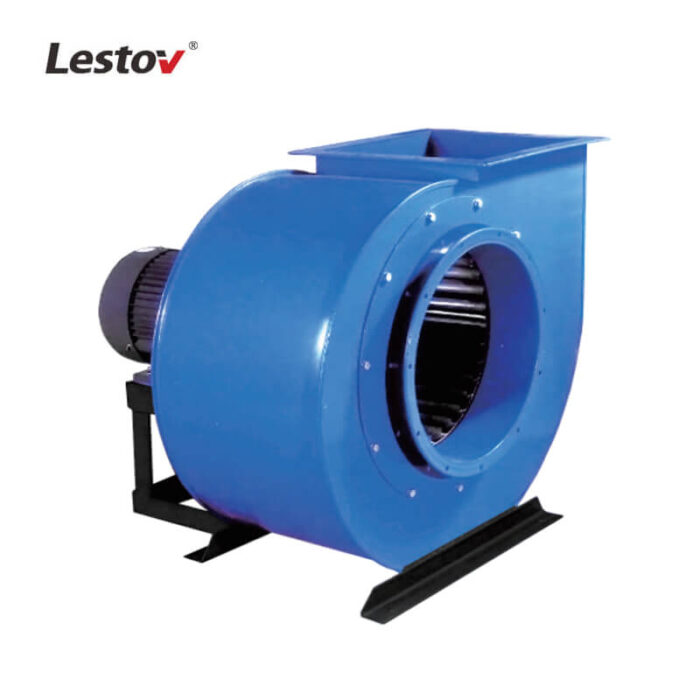

LT-11-62-2.8A Single Inlet Forward Curved Commercial Centrifugal Fan

Rated 0 out of 5

This Single Inlet Forward Curved Commercial Centrifugal Fan adopts a high-power electric motor and a dynamically balanced impeller. It can effectively discharge the purified oil fume outside, and achieve efficient ventilation.

Category: Commercial Kitchen Centrifugal Fan

Send Inquiry Chat Now

Description
Reviews (0)

Description

Large Exhaust Air Volume

1370m³/h to 21300m³/h for professional ventilation equipment for commercial kitchens.

Multiple Types

According to the exhaust air volume, you can choose left drive or left drive centrifugal fan.

Stainless Steel

The structure is made of stainless steel, and the outer shell can be painted to avoid rust.

Single air inlet

Forward leaning single air inlet structure absorbs most of the purified fume and discharges it efficiently.

Direct drive

Direct rotary exhaust system is adopted, and the high-power electric motor provides high speed and fast exhaust effect.

Low noise

The impeller has been calibrated statically and dynamically to make it balanced during operation and generate low noise.

Rotate in two directions：

Product Parameter Details:

Model No.: LT-11-62-2.8A
Power: 0.75KW-4
Rated Voltage: 220V, Single Phase; 380V, Three Phase
Voltage Fluctuation: From 180-240V
Product Size: L540*W557*H507mm
Inlet Size:φ205*255*285mm
Outlet Size: W272*H236mm
Air Flow: 1370-2760 m³/h
Speed: 1400 r/min
Medium Temperature: ≤80℃
Max pressure: 480-345 (pa)
Product Material: Stainless Steel #201/#304
Services: Customized OEM/ODM
Package Way: Wooden Box
Gross Weight: 39 KG
IPX3 Level: Yes
Warranty: 1 Year

LT-11-62-A Product Details:

Product Certificate:

Application:

This LT-11-62-A Single Inlet Forward Curved Commercial Centrifugal Fan can absorb most of the purified fumes, dust, and air, and is purchased by canteens, restaurants, and office spaces.

Why Choose Us:

As a manufacturer with 20 years of R&D /design /production /sales of a full range of commercial ventilation equipment, we can provide you with professional, efficient, and reliable commercial kitchen centrifugal fans at factory wholesale prices.
