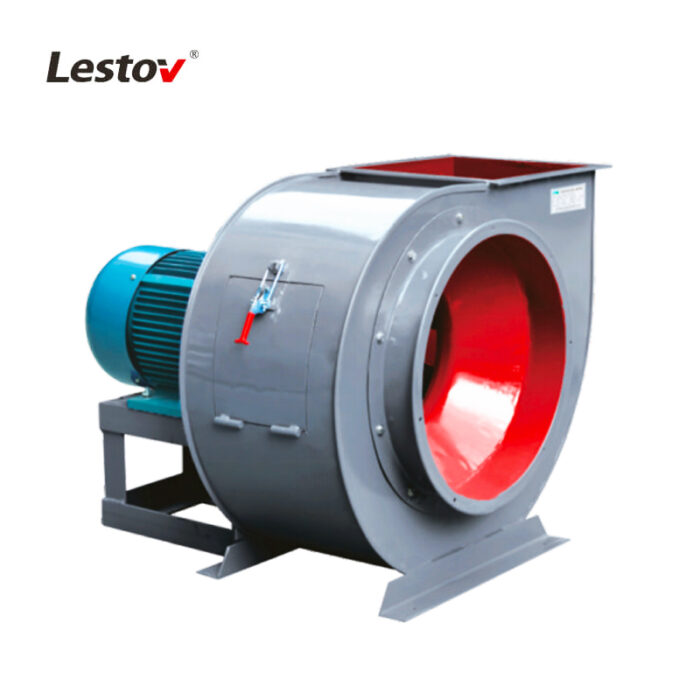

LT-4-72-4A Commercial Backward Curved Centrifugal Fan

LT-4-72-4A Commercial Backward Curved Centrifugal Fan 2

LT-4-72-4A Commercial Kitchen Backward Curved Centrifugal Blower Fan

Rated 0 out of 5

This Commercial Backward Curved Centrifugal Fan combines a high-efficiency centrifugal exhaust system and a high-temperature-resistant impeller, which can effectively discharge the purified air from restaurants, food factories, and offices.

Category: Commercial Kitchen Centrifugal Fan

Send Inquiry Chat Now

Description
Reviews (0)

Description

Large exhaust air volume

4012m³/h to 7419m³/h for professional ventilation equipment for commercial kitchens.

Multiple Types

According to the exhaust air volume, you can choose left drive or left drive centrifugal fan.

Stainless Steel

The structure is made of stainless steel, and the outer shell can be painted to avoid rust.

Single air inlet

Backward leaning single air inlet structure absorbs most of the purified fume and discharges it efficiently.

Backward Rotary

A Backward rotary exhaust system is adopted, and the high-power electric motor provides high speed and fast exhaust effect.

Low noise

The impeller has been calibrated statically and dynamically to make it balanced during operation and generate low noise.

Rotate in two directions：

Product Parameter Details:

Model No.: LT-4-72-4A
Power options: 5.5KW
Rated Voltage: 380V, Three Phase
Voltage Fluctuation: From 340-420V
Product Size: L735*G800*H709mm
Inlet Size:φ400*443*480mm
Outlet Size: W320*H280mm
Air Flow: 4012-7419 m³/h
Speed: 2900 r/min
Medium Temperature: ≤80℃
Max pressure: 2014-1320 (pa)
Product Material: Stainless Steel #201/#304
Services: Customized OEM/ODM
Package Way: Wooden Box
Gross Weight: 125 KG
IPX4 Level: Yes
Warranty: 1 Year

Other Product Details:

Product Certificate:

Application:

This Commercial Backward Curved Centrifugal Fan is suitable for restaurant electrostatic air cleaning, commercial air conditioners, or hot air circulation systems. It was purchased by many canteens, power plants, and large plazas for its exhaust speed and low energy consumption.

Why Choose Us:

As a manufacturer specializing in the production /design /development /sales of commercial ventilation equipment, we are allowed to provide you with a full range of commercial Centrifugal fans, commercial electrostatic air purifiers, and commercial kitchen exhaust hoods with ESP filters.
