LT-JDW-G-A-4 Restaurant Electronic Air Purifier for Kitchen Oil Fumes

Rated 0 out of 5
(be the first to review)

This LT-JDW-G-A-4 Commercial Electronic Air Purifier for Oil Fume uses a single-zone electrostatic ionization field with a double filtration system to help purify 65% of the oil fume in restaurants that mostly stew and steam. It is suitable for commercial kitchens where oil fumes are emitted at high altitudes.


Portable Type

The service life is 5-8 years. It is a high-efficiency and energy-saving purifier, and the countertop saves space.

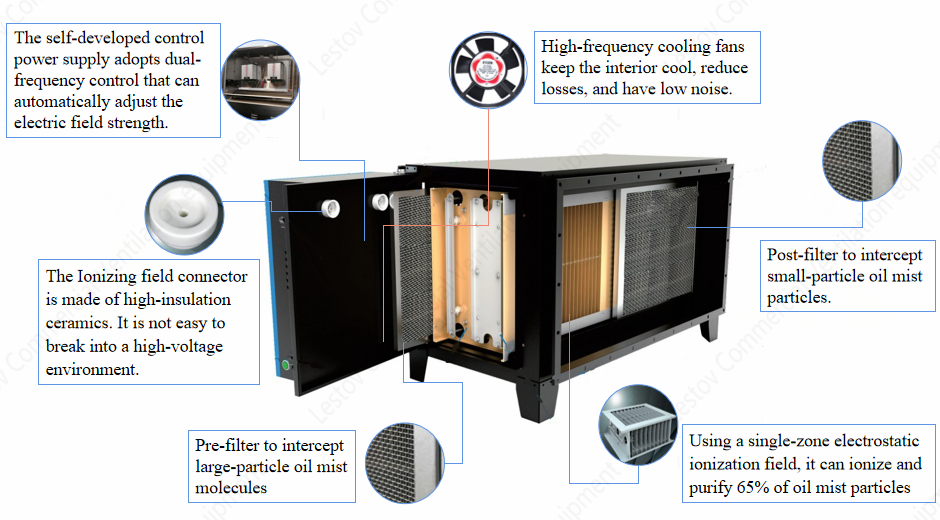

Each purification module unit adopts a split drawer structure, which is detachable and easy to assemble, clean, and maintain.

Alumina Ceramics

The Ionizing field connector is made of high-insulation ceramics. It is not easy to break into a high-voltage environment.

High Efficiency

Using a single-zone electrostatic ionization field, it can ionize and purify 65% of oil mist particles, meeting the ventilation needs of small restaurants.

Ionization Plate

The ionization plate adopts thickened galvanized iron plate, which provides the effect of strong corrosion resistance, strong conductivity, and durability.

Safety and Health

The ozone content in the air discharge is less than 0.01 (PPM) = the degree of the smell of normal people, and more than 0.1 (PPM) will affect the human body.

Double filtration

The double filter system adopts a pre-filter to intercept large-particle oil mist molecules, and a post-filter to intercept small-particle oil mist particles.

Multiple purifications

The distance between each ionization plate is kept at 22mm to achieve multiple purifications of oil mist particles, thereby improving the purification efficiency of impurities.

High-quality components

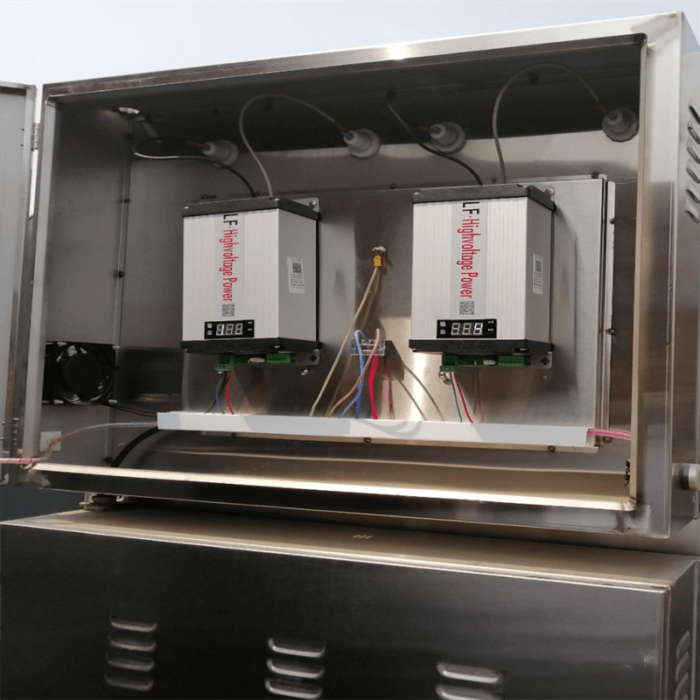

The self-developed high-performance, non-inductive, and pulse-added control power supply adopts dual-frequency control that can automatically adjust the electric field strength.

Product Parameter Details

  • Model No.: LT-JDW-G-A-4
  • Rated Power: 150W
  • Rated Voltage: 220V, 1 Phase, 50HZ
  • Ionizing voltage: 3-16KV

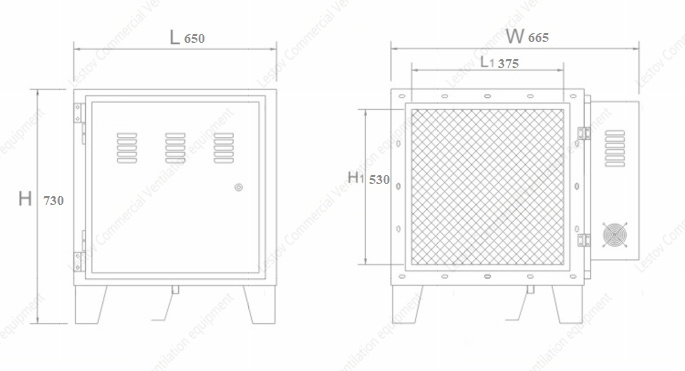

  • Product Size: L650*W665*H745mm
  • Product Material: Stainless Steel #304/201
  • Exhaust port Size: W375*H525mm
  • Handling air volume: 4000m³/h
  • Purification rate:65%
  • Package Way: Wooden Box
  • Net Weight: 45KG
  • Services: Customized OEM/ODM
  • IPX3 Level: Yes
  • Warranty: 1 Year

Product Certificate


This LT-JDW-G-A-4 Restaurant Electronic Air Purifier for Oil Fume, with 65% oil fume purification efficiency and a double filtration system. It provides efficient and professional help for the ventilation of small restaurants (such as western restaurants, Cantonese cuisine, and coffee shops).

Why Choose Us:

This Restaurant Electronic Air Purifier for Oil Fumes has been certified by CCC, CE, and CEP, and is sold to the United States, Singapore, Vietnam, and Indonesia.

Lestov has 20 years of experience in the manufacture of commercial kitchen ventilation equipment. We provide a full range of product procurement, customization, and professional maintenance.
