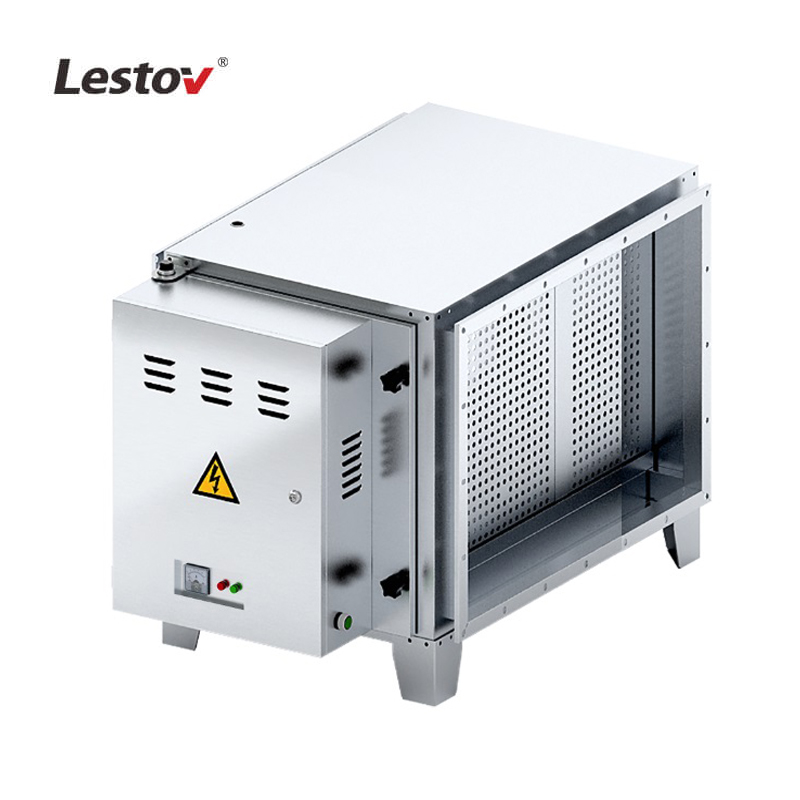

LT-JDW-G-B-4 High Altitude Commercial Electronic Air Exhaust Purifier

Rated 0 out of 5
(be the first to review)

This is commercial purification equipment equipped with dual oil mist ionization fields, which can purify or remove 85% of oil fumes. With the advantages of small size, high emission efficiency, and low energy consumption, it is used in Cantonese restaurants, cafes, and restaurants with average oil fume.



Each purification module unit adopts a split drawer structure, which is detachable and easy to assemble, clean, and maintain.

Safety Protection

Using an intelligent high-voltage constant power supply, it will automatically shut down the device when it is over-current, overloaded, or unstable.

Multiple sizes

The number of oil fume purifiers can be increased according to different needs and environments; manufacturers support product customization.

Intelligent Display

The intelligent display shows the working status of the oil fume purifier in real-time, including power consumption, operating status, and output voltage.

Safety and Health

The ozone content in the air discharge is less than 0.01 (PPM) = the degree of the smell of normal people, and more than 0.1 (PPM) will affect the human body.

Ionization Plate

The ionization field adopts an aviation aluminum plate, which is not easily deformed in a high-pressure environment, has strong conductivity, and is easy to clean.

85% purification rate

The ionization field adopts a high voltage + low voltage electrostatic ionization area, and filters oil mist particles and micron oil mist particles into the water and carbon dioxide.

High-quality components

The self-developed high-performance, non-inductive, and pulse-added control power supply adopts dual-frequency control that can automatically adjust the electric field strength.

Multiple purifications

Keep a distance of 5mm-9mm between each plate, multiple filtrations, supplementary collection, and ionization of oil fume particles to improve the purification rate of oil fume

Product Parameter Details

  • Model No.: LT-JDW-G-B
  • Rated Power: 150W
  • Rated Voltage: 220V, 1 Phase, 50HZ
  • Ionizing voltage: 3-16KV

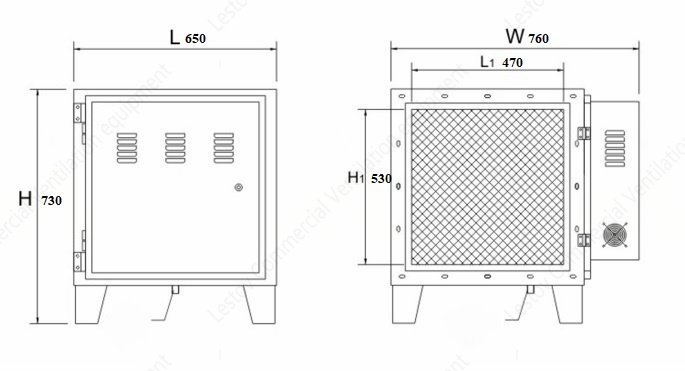

  • Product Size: L650*W760*H730mm
  • Product Material: Stainless Steel #304/201
  • Exhaust port Size: W470*H530mm
  • Handling air volume: 4000m³/h
  • Purification rate:85%
  • Package Way: Wooden Box
  • Net Weight: 50KG
  • Services: Customized OEM/ODM
  • IPX3 Level: Yes
  • Warranty: 1 Year

Product Certificate


This LT-JDW-G-B-4 Commercial Electronic Air Purifier is specially designed for kitchens that meet the conditions of high-altitude exhaust oil fumes, such as Chinese restaurants, school canteens, and movie theaters.

Why Choose Us?

Lestov has 20 years of experience in R&D/ design/ production/ sales of Low or High Altitude Commercial Electrostatic Air purifiers. The products have obtained CE/CCC/CEP certification and are sold in the United States, UAE, and Singapore.
