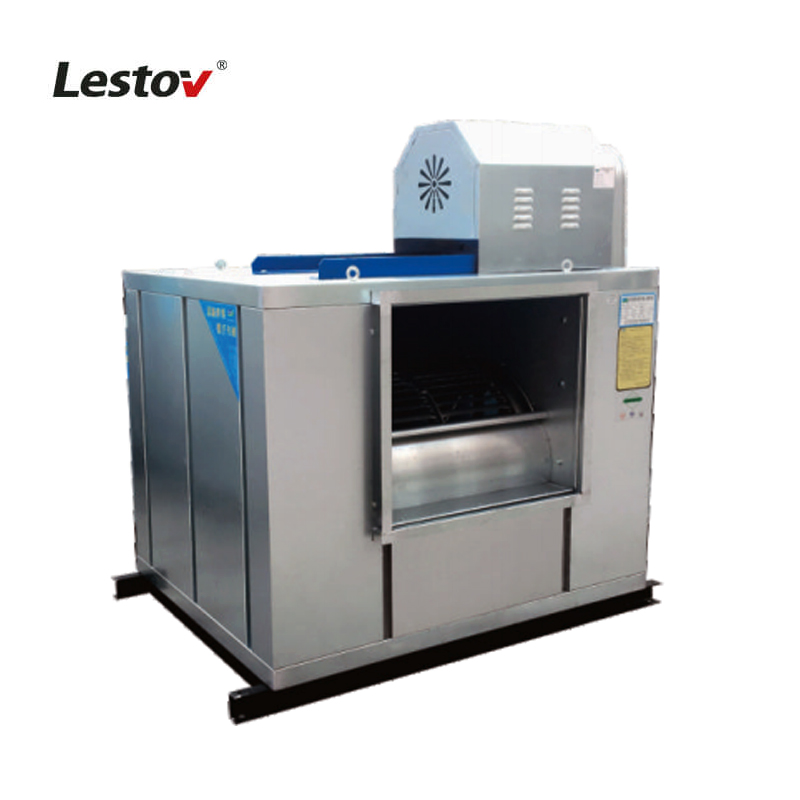

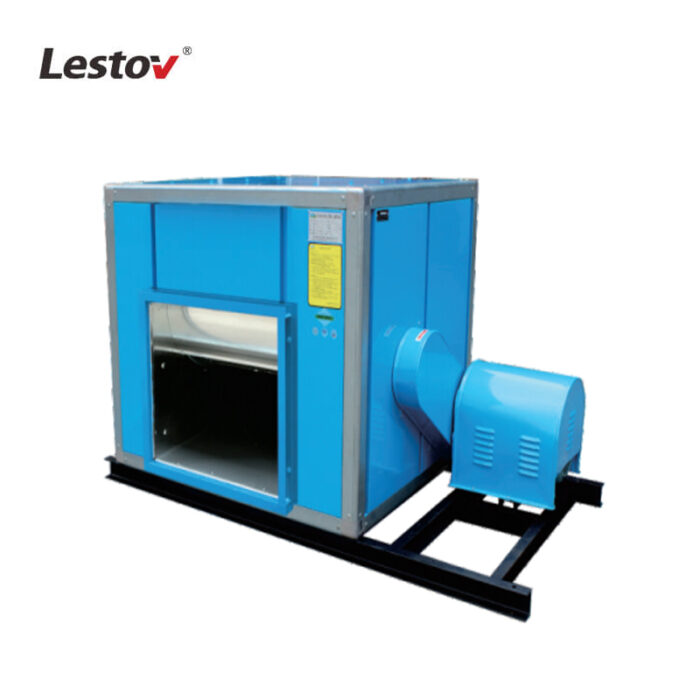

LT-TW-9" Low Noise Forward Curved Cabinet Centrifugal Fan

Rated 0 out of 5
(be the first to review)

This Commercial Cabinet Centrifugal Fan adopts a forward curved multi-blade centrifugal impeller, which can effectively ventilate restaurants, hotels, and cinemas with an exhaust air volume of 2674m³/h to 3768m³/h.



Each module of the cabinet centrifugal fan is detachable, and easy to assemble, clean, and maintain.

Low noise

The impeller has been calibrated statically and dynamically to make it balanced during operation and generate low noise.

Large Exhaust Air Volume

Forward curved blades rotate in the same direction as the impeller and can effectively discharge air from 2674m³/h to 3768m³/h.


It is suitable for multiple airflow/pressure combinations and can handle a variety of airflow conditions including clean, dry, and humid air.

Multiple sizes

Lestov commercial centrifugal fans are available in a variety of sizes to suit different applications – such as restaurants, canteens, or large commercial establishments.


The fan casing adopts a stainless steel frame structure, and each module can be disassembled. Durable in corrosive and erosive environments.

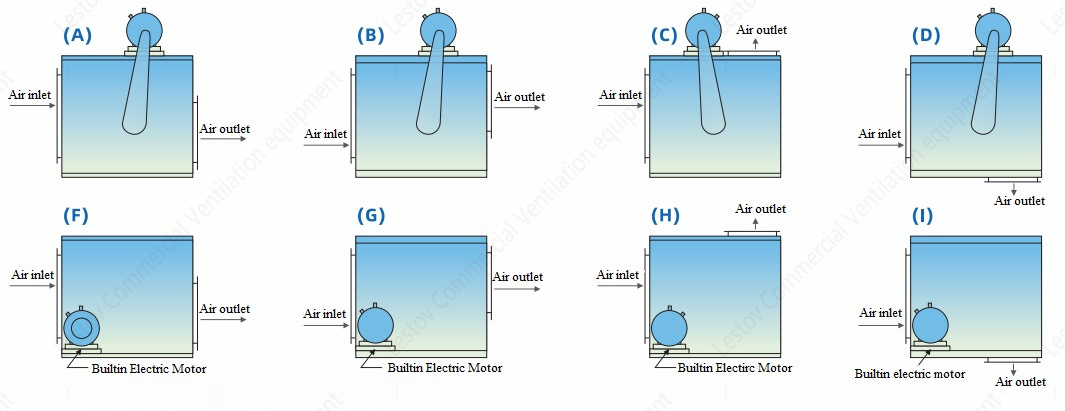

Air Exhaust directions:

Product Parameter Details:

  • Model No.: LT-TW-9"
  • Power options: 0.55KW/0.75KW/1.1KW
  • Rated Voltage: 380V, Three Phase
  • Voltage Fluctuation: From 340-420V

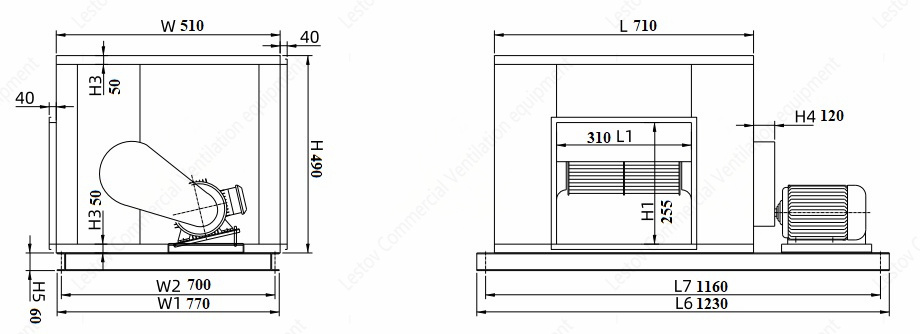

  • Product Size: L710*W510*H490mm
  • Inlet Size: W530*H390mm
  • Outlet Size: L₁310*H₁255mm
  • Air Flow: 2674-3768 m³/h
  • Medium Temperature: ≤80℃
  • Max pressure: 320-555 (pa)
  • Product Material: Stainless Steel #201/#304
  • Services: Customized OEM/ODM
  • Package Way: Wooden Box
  • IPX4 Level: Yes
  • Warranty: 1 Year

Product performance curve:

Product Certificate:


This is an LT-TW-9″ Low Noise Commercial Cabinet Centrifugal Fan specially designed for ventilation in large places. It has the advantages of low noise, large exhaust volume, and durability. It is suitable for cinemas, hotels, and canteens.

Why choose us?

As a professional manufacturer of Commercial Cabinet Centrifugal Fan, we are allowed to provide you with a full range of fans including forward curved, backward curved, blower, and cabinet.

As a manufacturer of commercial centrifugal fans with 20 years of R&D/design/production/sales, we have provided multi-size, multi-type, and high-efficiency ventilation equipment to customers in 50 countries.
