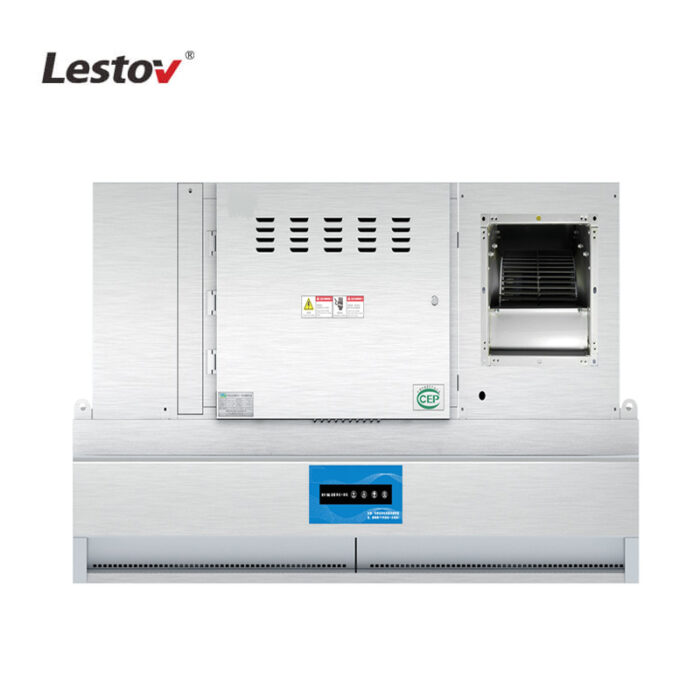

LT-CYZ-2000 Commercial Kitchen Hood Style Electrostatic Precipitator

Rated 0 out of 5
(be the first to review)

This All-in-one Restaurant Hood System with electrostatic air cleaner can purify 95% of oil mist particles, deodorize and decompose them into the water and carbon dioxide that meet emission standards. It can help ventilate restaurants with a lot of oily smoke, such as Asian restaurants, fried chicken fast food restaurants, and canteens.


High-quality components

Imported industrial electronic components and digital piezoelectric power supply are used, and the service life can reach more than 5 years.

98% purification rate

The high-voltage electrostatic ionization field drives the oil mist to the dust collection plate and intercepts 98% of the fine particles (0.1um) of the oil mist.

Safety and Health

The ozone content in the air discharge is less than 0.01 (PPM) = the degree of the smell of normal people, and more than 0.1 (PPM) will affect the human body.

Intelligent Operation

The control system combines induction start and mobile app remote control, supports timing, wind speed regulation, and triple purification (oil filter, smoke filter, cleaning).

Multiple purifications

The distance between the oil mist ionization plates is within ±0.2mm, and the gap between each plate is increased to realize multiple filtration and purification of oil mist.


The integrated electrostatic precipitator covers range hoods and ventilation equipment. One integrated electrostatic precipitator can meet the ventilation needs of restaurants.

Safety Protection

Automatically shut down the machine at high pressure, low pressure, overcurrent, and overload. The function of constant voltage and stable current can be started with a delay.

High Efficiency

The metal filter adopts the principle of gravity and collision to separate impurities and grease. It makes the purification rate of the next level electrostatic field reach 90% through uniform flow.

UV Ozone Lighter

The ultraviolet rays in the 254nm band intercept oil molecules, and the extra rays in the 185nm band react with oxygen to produce ozone less than 0.01 (PPM), which is decomposed into carbon dioxide and water.

The working principle of the Lestov commercial kitchen Hood Style Electrostatic Precipitator:

Product Parameter Details:

  • Model No.: LT-CYZ-2000
  • Power Options: 1900W
  • Rated Voltage: 380V, 3 Phase, 50HZ
  • Voltage Fluctuation: From 340V to 464V
  • Product Material: Stainless Steel #201/#304
  • Product Size: L2000*W1300*H1000mm
  • Exhaust port Size: W400*H400mm
  • Handling air volume: 4000m³/h
  • Switch Control Way: Touch screen panel
  • Purification rate:97%
  • Package Way: Wooden Box
  • Services: Customized OEM/ODM
  • IPX3 Level: Yes
  • Warranty: 1 Year

Product Certificate


This LT-CYZ-2000 Commercial Kitchen Hood Style Electrostatic Precipitator can purify 97% of oil fume, dust, or oil mist. It is suitable for Asian restaurants, commercial plazas, and chemical industries with a lot of oil fume.

Why choose us?

As a commercial full-range ventilation equipment manufacturer with 20 years of experience, our product has CE/ISO/CCC/CEP certificates. We can provide commercial kitchen hood-style electrostatic air cleaners at wholesale price.
