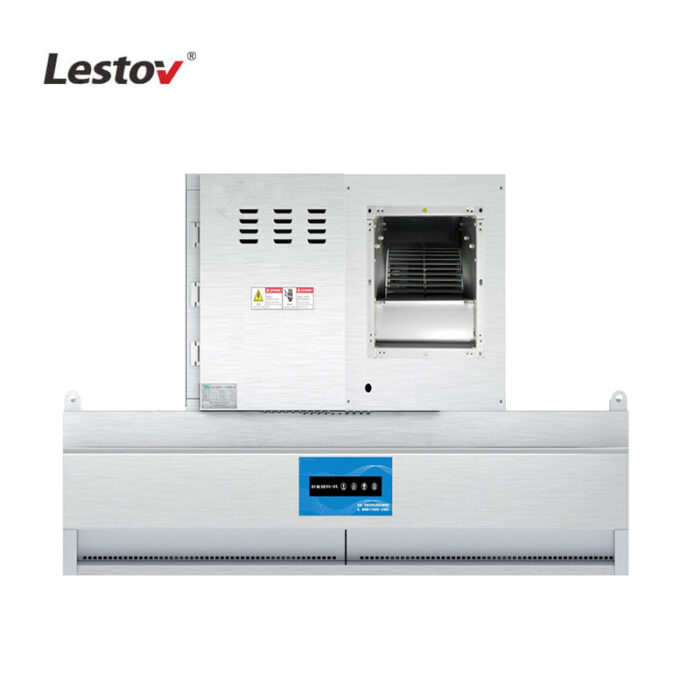

LT-DYZ-1500 Commercial Kitchen Ventilation System with ESP Filter

Rated 0 out of 5
(be the first to review)

This LT-DYZ-1500 restaurant hood system with electrostatic air purifier adopts a triple filter system, which can separate, filter and purify kitchen fume, industrial dust, and indoor air, effectively helping restaurants, shopping malls, and gymnasiums to ventilate.


High-quality components

Imported industrial electronic components and digital piezoelectric power supply are used, and the service life can reach more than 5 years.

High-insulation ceramics

The Ionizing field connector is made of high-insulation ceramics, and the waterproof level reaches IPX3. It is not easy to break into a high-voltage environment.

Safety and Health

The ozone content in the air discharge is less than 0.01 (PPM) = the degree of the smell of normal people, and more than 0.1 (PPM) will affect the human body.

Intelligent Operation

The control system combines induction start and mobile app remote control and supports timing, wind speed regulation, and triple purification (oil filter, smoke filter, cleaning).

Ionization Plate

The distance between the oil mist ionization plates is within ±0.2mm, and the gap between each plate is increased to realize multiple filtration and purification of oil mist.

High Efficiency

The 5-stage filtration and purification design achieves a purification rate of 80% of the oil fume in commercial kitchens and emits oil fume that meets hygienic standards.


The integrated electrostatic precipitator covers range hoods and ventilation equipment. One integrated electrostatic precipitator can meet the ventilation needs of restaurants.

Safety Protection

Automatically shut down the machine at high pressure, low pressure, overcurrent, and overload. The function of constant voltage and stable current can be started with a delay.

Ionization Plate

The ionization plate is made of aviation aluminum plate with high conductivity, high strength, and strong corrosion resistance. Each aluminum plate is made of dozens of times of fine processing.

The working principle of Lestov commercial kitchen hood with ESP filter:

Product Parameter Details:

  • Model No.: LT-DYZ-1500
  • Power Options: 1100W
  • Rated Voltage: 380V, 3 Phase, 50HZ
  • Voltage Fluctuation: From 340V to 464V
  • Product Material: Stainless Steel #201/#304
  • Product Size: L1500*W1300*H1000mm
  • Exhaust port Size: W400*H400mm
  • Handling air volume: 3600m³/h
  • Switch Control Way: Touch screen panel
  • Purification rate:80%
  • Package Way: Wooden Box
  • Services: Customized OEM/ODM
  • IPX3 Level: Yes
  • Warranty: 1 Year

The Installation method of the Lestov commercial kitchen hood with ESP filter:

Product certificate:


This LT-DYZ-1500 commercial Kitchen ventilation system with ESP filter adopts the technology of dynamic oil mist interception and triple oil fume filtration system, which can provide efficient ventilation for restaurants, canteens, and large commercial places.

Why choose us?

Lestov has 20 years of production experience in commercial ventilation equipment, and the products have been certified by ISO19001, CEP, and kitchenware distributors in 50 countries. We can provide you with a full range of commercial kitchen exhaust systems at wholesale prices.
