LT-JD-XB-16L Double Restaurant Kitchen Electrostatic Furnace Air Filter

Rated 0 out of 5
(be the first to review)

This Restaurant Kitchen Electrostatic Furnace Air Filter uses two sets of oil fume ionization equipment, with a purification air volume of 8000m³/h to 16000m³/h, to help large dining places, industrial areas, and gymnasiums achieve an 85% fume purification rate.

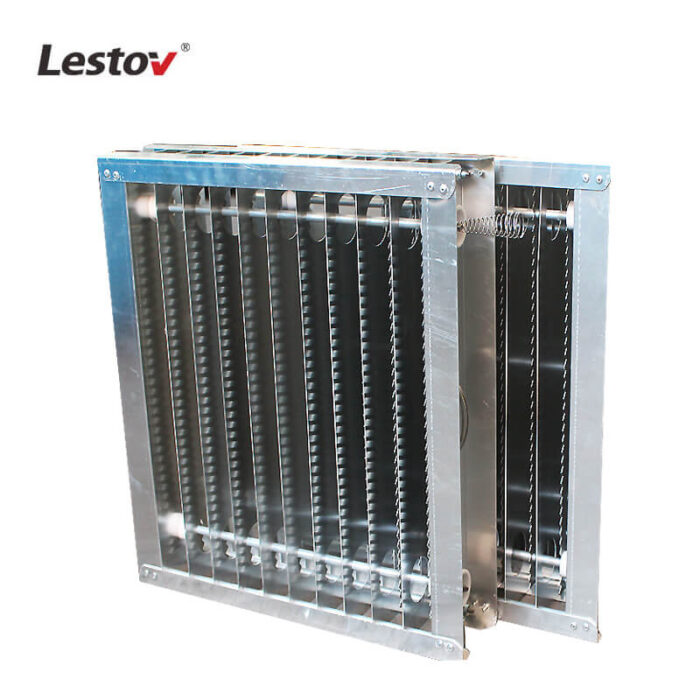

Ionization Plate

The ionization plate is made of aviation aluminum plate with high conductivity, high strength, and strong corrosion resistance. Each aluminum plate is made of dozens of times of fine processing.

High-quality components

The self-developed high-performance, non-inductive, and pulse-added control power supply adopts dual-frequency control that can automatically adjust the electric field strength.

85% purification rate

Keep a distance of 5mm-9mm between each plate, multiple filtrations, supplementary collection, and ionization of oil fume particles to improve the purification rate of oil fume

Safety and Health

The ozone content in the air discharge is less than 0.01 (PPM) = the degree of the smell of normal people, and more than 0.1 (PPM) will affect the human body.

High-insulation ceramics

The Ionizing field connector comprises high-insulation ceramics, and the waterproof level reaches IPX3. It is not easy to break into a high-voltage environment.


The ionization field adopts a high voltage + low voltage electrostatic ionization area and filters oil mist particles and micron oil mist particles into the water and carbon dioxide.

Double filtration

The pre-filter removes oil particles and molecules, and the post-installed activated carbon net removes oily and peculiar smells.

Safety Protection

Automatic protection devices for overcurrent and overvoltage are added to the electrostatic power supply control system.


Each purification module unit adopts a split drawer structure, which is detachable and easy to assemble, clean, and maintain.

Product Parameter Details

  • Model No.: LT-JD-X-B-16L
  • Rated Power: 480W
  • Rated Voltage: 220V, 1 Phase, 50HZ
  • Ionizing voltage: 3-16KV
  • Product Size: L980*W950*H1350mm
  • Product Material: Stainless Steel #304/201
  • Exhaust port Size: W667*H1150mm
  • Handling air volume: 8000 to 16000m³/h
  • Purification rate:85%
  • Package Way: Wooden Box
  • Net Weight: 210KG
  • Services: Customized OEM/ODM
  • IPX3 Level: Yes
  • Warranty: 1 Year

Product Certificate


This LT-JD-XB-16L Commercial Kitchen Electrostatic Furnace Air Filter is used in large commercial shopping plazas, Asian restaurants, and food trucks with its large oil fume purification capacity and 85% purification rate.

Why Choose Us?

As the preferred manufacturer of commercial kitchen ventilation equipment in China, Lestov has sold a full range of commercial kitchen fume ventilation systems to 10 countries, and they have CE/CCC/CEP certificates.

Lestov has 20 years of experience in the manufacture/ design/ development/ sales of Commercial Kitchen Electrostatic Furnace Air filters and provides customized services at factory prices.
